If you're planning a substantial home project, the temptation is to start with ideas. A rear extension. A lower-ground floor gym. A calmer kitchen layout. Better daylight. More storage. A proper principal suite.
The problem is that design decisions are only as good as the information beneath them.
In practice, the first serious step isn't sketching. It's establishing exactly what already exists. That's what a measured building survey does. It gives your architect, structural engineer and planning team a precise record of the building as it stands today, so the scheme develops from fact rather than assumption.
For period houses, listed buildings and complex refurbishments in South West London, that distinction matters more than most clients realise. Older buildings rarely behave like neat diagrams. Walls drift. Floors fall away. Ceiling heights vary. Past alterations leave odd structural relationships behind. If those conditions aren't captured properly at the outset, the design process becomes slower, riskier and more expensive.
The Starting Point for Every Successful Home Transformation
A homeowner in Wimbledon or Richmond often reaches the same point. They know the house has potential, but they also know it doesn't quite work. The kitchen is cramped, the lower ground floor feels disconnected, or the loft and garden don't speak to the rest of the house.
At that stage, many people assume the architect can begin with existing sales particulars or old planning drawings. That's rarely wise.
Those documents are often useful as background. They are not a dependable basis for design. Estate agent plans are usually too simplified. Historic drawings may record an earlier version of the house rather than its present condition. Even relatively recent plans can miss structural changes, altered openings, service runs or subtle level differences that later become major coordination problems.
A measured building survey is the first reliable baseline. It records the actual property, not the idealised one on paper.
Why the first drawings matter so much
When the starting information is wrong, every later decision sits on weak foundations. Room layouts become distorted. Joinery dimensions need revising. Stair design stops working. Structural assumptions unravel when builders open up the fabric.
That is especially true on:
Basement extensions where structure, waterproofing and services must all coordinate tightly
Listed or heritage homes where small inaccuracies can lead to the wrong conservation approach
High-end refurbishments where bespoke interiors depend on precise geometry
Planning submissions where accurate existing drawings help show the impact of proposed work clearly
Practical rule: if the project is significant, the survey isn't an optional extra. It's part of proper risk control.
Clients sometimes see the measured survey as an administrative prelude. It isn't. It's the bridge between ambition and buildability.
A thoughtful design can only respond properly to the house when the architect understands what is there. That means not only room sizes, but also wall positions, ceiling levels, irregularities, window locations and the relationship between old and newer parts of the building.
Without that baseline, you're designing against guesswork. With it, you're designing against reality.
Understanding the Measured Building Survey
So, what is a measured building survey? It's an accurate record of a building in its current form, prepared so architects, engineers and other consultants can work from dependable information.
A simple way to think about it is as the building's digital DNA. It captures the geometry, proportions and condition-related irregularities that define the property as it really exists.
What it records
A proper measured survey goes far beyond a basic floor plan. Depending on the brief, it can record:
Internal layout including wall positions and room dimensions
Vertical information such as ceiling heights and level changes
Openings and structure including doors, windows and structural elements
External form through elevations, roof information and sections
Area information including official area calculations where required
For heritage property, the role is even more important. Measured building surveys are described as essential for heritage preservation in the UK, providing baseline data for architectural accuracy and regulatory compliance, and producing floor plans and area calculations such as NIA and GIA for listed properties in South West London and Surrey.
Why it matters more than a basic set of plans
Older houses are full of small deviations that affect design. A wall that appears straight may not be straight. A bay window may sit slightly off-axis. Floor levels may step between rooms in ways that only become obvious when you try to insert new joinery, align stone flooring, or resolve thresholds to a garden terrace.
Those details don't just matter to architects. They matter to everyone involved in the project.
The survey becomes the shared reference point. Architect, engineer, interior designer, contractor and planning consultant all work from the same source of truth.
That unified record reduces misunderstanding early. It also makes later technical coordination more disciplined.
What it is not
A measured survey doesn't tell you everything about the building. It won't replace structural investigation, opening-up work, drainage information or specialist reports where those are needed.
It does something different. It establishes geometry accurately and consistently.
That may sound modest, but in practice it changes the quality of decision-making across the whole project. Good design depends on judgement. Good judgement depends on reliable information. A measured survey is usually the first point at which that reliability enters the process.
Modern Surveying Methods and Technologies
Not every measured survey is captured in the same way. The right method depends on the building, the design ambition and the level of precision the team will need later.
For complex residential work, 3D laser scanning has become the strongest option.
3D laser scanning
Modern surveys often use scanners and total stations to capture millions of data points, creating a point cloud that surveyors and designers can use to produce floor plans, elevations, roof plans and cross-sections. That approach is particularly valuable for luxury refurbishments and basement extensions where floor-to-floor heights, beam positions and other structural elements must be recorded precisely, as outlined by Technics Group's explanation of modern measured building surveys.
In practical terms, the scanner records an exceptionally dense three-dimensional map of the building. From that, the team can interrogate awkward corners, verify heights and understand relationships that are hard to capture cleanly by hand.
This is usually the right approach for:
Listed buildings with irregular geometry
Deep refurbishments where many disciplines need the same base information
Basement projects where vertical coordination is critical
Interior-heavy schemes involving bespoke staircases, joinery and stone packages
Hand-held laser tools and traditional methods
Hand-held laser measures, often called distos, still have their place. For smaller or simpler projects, they can be perfectly serviceable.
A good surveyor can produce straightforward plans efficiently with this method, especially where the building is relatively regular and the required outputs are limited.
The trade-off is coverage. A hand-measured survey may capture key dimensions well, but it doesn't provide the same spatial richness as a full scan. That matters once complexity rises.
Photographic and model-based workflows
Some survey workflows also incorporate photography to support modelling and interpretation. That can be helpful for façades, details and general coordination.
But photographs alone don't replace a robust survey framework. For design teams, images are reference material. Measured geometry remains the core asset.
A short demonstration helps make the scanning process easier to visualise.
What works and what doesn't
The mistake is not choosing a simple method for a simple problem. The mistake is choosing a simple method for a complicated one.
A regular modern house may tolerate a lighter survey approach. A period property with additions from several eras usually won't.
For high-value residential design, the best question isn't "what is the cheapest way to measure this house?" It's "what level of information will allow the design to proceed without constant revision?"
That's a better standard for deciding.
The Key Deliverables What You Actually Receive
A good measured survey does not end with someone emailing over a PDF plan. For a substantial house project, particularly in South West London where period properties, tight sites and layered alterations are common, its value is a set of outputs your architect and consultants can use with confidence from concept design through to technical work.
A survey package usually begins with captured site information, often including point cloud data, and is then translated into usable drawing and model formats. Point cloud technology allows architects to extract precise measurements and create 2D elevations, sections and interactive 3D models, while also helping identify issues such as unequal floor levels and non-standard wall thicknesses before construction begins.

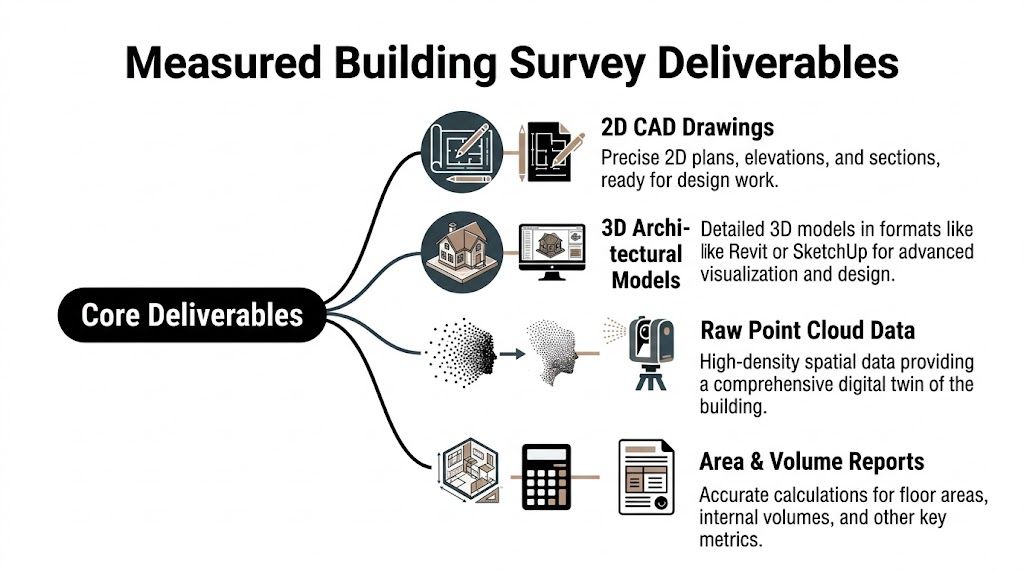

The core outputs
For most residential commissions, you will receive a customized mix of the following:
Floor plans showing room layouts, wall thicknesses, openings, fixtures and circulation
Elevations recording the external faces of the building for design, planning and conservation discussion
Sections showing floor-to-floor heights, stair geometry, roof build-up and level changes
Roof plans where drainage falls, chimney positions, parapets or access routes need to be understood
Reflected ceiling plans where joinery, lighting coordination or heritage detailing requires them
3D models to support design development, consultant coordination and visual testing
Point cloud data where the design team needs to check original site geometry directly
Area schedules if the brief requires GIA, NIA or other formal measurements
The right combination depends on what is being designed. A rear extension to a clean modern house may need less. A listed townhouse with a basement, retained stair and bespoke joinery package usually needs more.
Why each deliverable matters
Each output answers a different project question.
Floor plans establish the base geometry for layout decisions. Sections often reveal the issues that cause the most expensive redesigns, such as inadequate head height, misaligned landings or floor levels that vary more than anyone expected. Elevations matter on planning-sensitive streets, where a few inches at parapet or window head level can change whether a proposal feels properly integrated. A 3D model helps the team coordinate steel, structure, glazing and interior architecture before those conflicts appear on site.
In high-end residential work, this has a direct cost implication. Better survey information reduces provisional design assumptions, cuts down redraw time and limits the risk of ordering bespoke elements against the wrong dimensions. It also supports a more disciplined approach to sustainability, because retaining existing fabric is easier when the existing building has been recorded accurately enough to design around it rather than strip it back unnecessarily.
The most useful survey package is briefed around the decisions the project team needs to make, not around the cheapest set of drawings a surveyor can issue.
Where structural alterations are likely, survey information should also sit alongside early engineering advice. A structural survey for a home project answers different questions from a measured building survey, and the two are often most useful when considered together.
Typical levels of survey output
Clients often ask for "a measured survey" as if it were one fixed product. In practice, the scope can vary significantly.
Survey package | Typical deliverables | Best suited to |
|---|---|---|
Basic drawn survey | Plans, key elevations, limited height information | Simpler houses, early feasibility work, straightforward alterations |
Detailed architectural survey | Coordinated plans, elevations, sections, roof plan and area schedules | Extensions, full refurbishments, planning submissions, interior reconfiguration |
Model-based survey package | 3D model, coordinated 2D drawings, point cloud reference data | Complex houses, heritage properties, basement works, multi-consultant coordination |
For period and architecturally ambitious homes, I usually advise clients to judge the survey by what it will prevent. If the information lets the design team resolve structure, planning constraints, heritage sensitivities and bespoke detailing before work starts on site, it has done its job properly.
When a Measured Building Survey Is Essential
A family buys a handsome late-Victorian house in South West London and wants a basement, a rear extension and a full interior reworking. The estate agent's particulars look tidy. The old planning drawings look tidy. The house itself is not. Floors fall, party walls drift, chimney breasts are thicker than expected, and the roof structure bears little relation to the drawings. On projects like this, a measured survey is not an optional extra. It is the base information that protects the design, the budget and the programme.
The more valuable and complex the property, the more expensive bad information becomes. On a high-end residential project, one missed set-back, one misunderstood level change or one inaccurate wall thickness can affect planning drawings, structural design, joinery packages and contractor pricing. Correcting those errors after design work has started costs far more than surveying the building properly at the outset.
Heritage and listed property
Listed buildings and period houses need especially careful recording because their irregularities are often the point. The building's age, movement and accumulated alterations all affect what can be changed and how new work should meet the old fabric.
In practice, that means a square-looking room may not be square, parallel walls may not be parallel, and floor levels may change more than anyone expects between front and back. If the survey smooths out those distortions, the architect may draw elegant proposals that do not fit the actual building, and the contractor then prices against assumptions rather than facts.
For heritage work, I usually want the survey scope agreed with the design team before the surveyor attends site. That helps determine whether standard plans and elevations are enough, or whether the project needs sections through awkward junctions, stair geometry, roof structure information or a deformation-aware record of the existing building. That decision has direct consequences for conservation advice, planning risk and fabrication accuracy.
Basements, major refurbishments and reconfiguration
Basement projects expose weak survey information very quickly. Existing levels, neighbouring relationships, drainage runs, ceiling heights and structural positions all need to be understood early, particularly in dense London streets where access is tight and tolerance for site surprises is low.
The same applies to major internal reworking. If the project involves moving staircases, opening up load-bearing walls, introducing large rooflights, or fitting bespoke kitchens and bathrooms into an older shell, approximate dimensions are not good enough. Expensive houses tend to include expensive components, and those components are often designed and manufactured before the building is stripped back. If the survey is wrong, the cost shows up later in redesign, remanufacture and delay.
A measured survey becomes particularly important where the scheme includes:
Structural alteration such as removing walls, lowering floors or forming new openings
Complex level changes including split floors, new stairs or roof reconfiguration
Bespoke fabrication where glazing, joinery, stonework or metalwork must fit precisely
Dense service coordination around plant rooms, utility spaces, bathrooms and kitchens
Sustainability upgrades where insulation build-ups, airtightness work and secondary glazing must be integrated into an existing fabric without guesswork
Planning and consultant coordination
In planning terms, accurate existing drawings matter most where the site is sensitive. Conservation areas, listed buildings, neighbouring rights to light concerns and ambitious extensions all depend on the proposed design being measured from the existing building, not from assumptions carried forward from old PDFs.
Consultant coordination is just as important. The architect, structural engineer, party wall surveyor, interior designer and contractor all work better when they start from the same reliable base. Where the project also raises concerns about movement, cracking or load paths, it is sensible to pair the measured survey with a structural survey for a home project, because each serves a different purpose.
A measured survey records the building you have. A structural survey helps explain what that building is doing.
On well-run projects, that distinction saves money. The architect can design with confidence, the engineer can target interventions more precisely, and the client avoids paying for avoidable revisions halfway through planning, tendering or construction.
Understanding Survey Costs and Timelines
Measured survey fees vary because the brief varies. The building size matters, but complexity matters just as much.
For UK properties of 200-500m², a measured survey can cost £1,500-£5,000, with pricing scaling from around £2/m² for basic 2D plans to £8/m² for a full BIM model, while heritage properties often carry a 20-30% premium, according to this guide to measured survey costs and outputs.
What drives the fee
The main cost drivers are usually:
Property complexity because irregular geometry takes longer to capture and process
Required outputs since a BIM-ready model demands more work than a basic drawing set
Access conditions including roof areas, plant spaces, basements and restricted voids
Heritage sensitivity where surveyors may need a more careful and specialised methodology
That means two houses of a similar size can produce very different quotes.
Why the investment usually pays for itself
Clients sometimes ask whether the survey can be simplified to save money. Sometimes it can. Often it shouldn't.
A lean brief is sensible when the project itself is modest. It is not sensible when the design ambition is high and the building is awkward. In that situation, under-scoping the survey often shifts cost later into redesign, re-measurement, contractor queries and fabrication adjustments.
The same source notes that survey data can support sustainable design work, including energy modelling and identifying 10-20% efficiency gains, particularly in extensions and basements. That makes the survey useful beyond geometry alone. It can help the design team make better decisions about envelope performance and long-term running quality.
Timelines and practical expectations
Timelines depend on scale and complexity, so it's better to discuss programme in terms of scope rather than assume a fixed standard duration.
Ask the surveyor these questions before appointment:
What outputs are included. Plans only, or plans plus elevations, sections and model?
What level of accuracy is being quoted for. This matters greatly on older buildings.
How will inaccessible areas be handled. Loft voids, roofs and service spaces often affect usefulness later.
What file formats will be issued. Your architect will care about this.
Who is checking the work. Quality control matters more than speed.
If you're budgeting the whole professional process, this related guide on architects plans cost in the UK in 2026 helps place survey fees in context.
Integrating Your Survey with Your Architect and Planning
The survey is most valuable when it isn't treated as a standalone package that gets emailed around and forgotten.
A good architectural team will integrate the survey directly into the design workflow from the outset. That means importing drawings or point cloud data into the working model, checking geometry early, and using the information to test ideas against the actual building rather than a simplified approximation.
Why early coordination matters
When the architect helps shape the survey brief, the right information is more likely to be captured first time.
For example, a project involving a new staircase, lowered rear floor and garden connection may need particularly careful section information. A conservation-led scheme may need more façade detail. A basement project may need stronger coordination around existing levels and structural relationships.
If nobody defines those needs clearly at the start, the survey may be technically competent but strategically incomplete.
The best survey is not simply accurate. It's accurate in the places that matter for the design and planning decisions ahead.
Planning benefits
Accurate existing drawings are also a practical asset in planning. They allow the proposal to be assessed against a clear, credible baseline. That is especially important where the site is sensitive, the existing house has evolved over time, or neighbouring context is tight.
This is why planning application drawings depend so heavily on well-prepared measured information. If the existing record is weak, the entire submission becomes harder to trust.
In the best-run projects, surveyor, architect and engineer are aligned early. That doesn't remove every site surprise. Buildings are too complex for that. But it does remove a large category of avoidable mistakes, and that's one of the most valuable things professional preparation can do.
If you're planning a refurbishment, extension, basement or heritage renovation and want clear advice before you commit, Harper Latter Architects can help you shape the right starting point, brief the right survey information, and turn accurate existing data into a well-resolved home project.
