A Homeowner's Guide to Planning Application Drawings

So, you’ve got a vision for your home—a bright kitchen extension, a clever loft conversion, or maybe even a brand new build from the ground up. But how do you explain that vision to your local council in a way they’ll understand and approve? This is where planning application drawings come in.

These aren’t just simple sketches. Think of them as the official language for your project, a detailed visual contract that legally defines what you’re proposing to build. They are, without a doubt, the cornerstone of any successful UK planning application.

The Blueprint for Your Project's Success

Imagine trying to describe a complex, bespoke renovation using only words. It’s nearly impossible to convey the exact scale, materials, and impact on your neighbours. Planning application drawings solve this problem entirely. They are a precise, universally understood set of documents that communicate your architectural vision to the local planning authority.

It helps to see them less as artistic impressions and more as technical instructions. These drawings form the legal foundation of your planning submission, giving planning officers all the details they need to assess whether your project aligns with local and national policies. Without clear, accurate, and comprehensive drawings, an application is almost certain to face delays or even an outright refusal.

Why Precision Is Non-Negotiable

You have to remember that local planning authorities in England handle hundreds of thousands of applications every year. The sheer volume means officers have very limited time to make sense of unclear or incomplete submissions. If you're curious about the scale, you can explore the government's official planning statistics to see just how busy they are.

A professional set of planning drawings does several critical jobs:

• It defines the scope: It clearly shows the site boundary, the exact size and position of your proposed works, and how it all sits in relation to neighbouring properties.

• It demonstrates compliance: The drawings provide visual proof that your design respects the local character, avoids overlooking, and meets all relevant planning rules.

• It eliminates ambiguity: By using standardised scales and clear notes, the drawings remove any guesswork for the planning officer, making their assessment process much smoother.

• It forms a legal record: Once approved, these drawings become a legally binding document. Any building work that deviates from them could lead to serious enforcement action.

In short, your planning drawings are the single most important part of your submission. They are your primary tool for persuading the council that your project is well-considered, compliant, and deserves to be approved.

More Than Just Lines on a Page

For more ambitious projects, like a luxury basement conversion or an extension inside a Conservation Area, the drawings carry even more weight. They must show not only what you want to build but also how you’ll achieve it without harming the character of the existing property or the wider area.

This is where true architectural expertise comes in. It requires a deep understanding of building materials, construction methods, and crucially, local planning policy. An architect’s job is to translate your personal hopes for your home into the technical format the council needs to see. They ensure every line, dimension, and note on the page builds a robust and persuasive case for your project. It’s this methodical approach that turns a dream into an approved reality, paving the way for the exciting design and construction stages that follow.

The Key Drawings Your Application Must Include

Submitting a planning application can feel like you’re telling the council a story about your project's future. To make that story compelling and clear, you need the right illustrations—your planning application drawings. Each one is like a chapter, explaining a different part of your vision and working together to paint a complete picture.

If you miss one, it’s like tearing a page out of the book. The planning officer is left with an incomplete narrative, leading to questions, delays, and potentially, a refusal. To get a swift and positive decision, your application needs a specific set of drawings, each answering a different question about your project, from its place in the neighbourhood down to the detail of a new window.

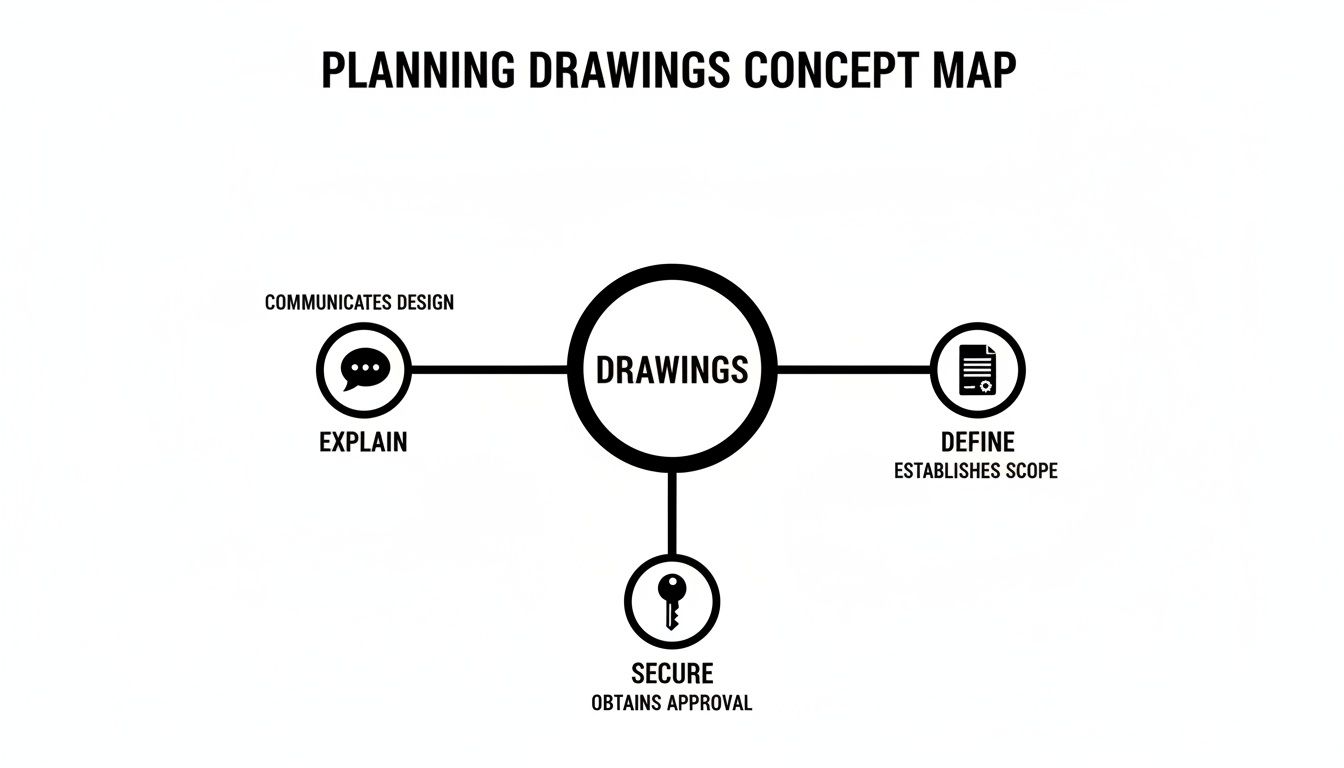

This is how the different drawings work together to get your project over the line.

As you can see, these aren't just technical diagrams; they are essential tools for explaining your design, defining its scope, and securing its approval.

Site Location and Block Plans

Every story needs a setting. For your planning application, that setting is established by two crucial documents: the Site Location Plan and the Block Plan. These are the very first things a planning officer reviews to understand where your project fits into the wider environment.

First up, the Site Location Plan (usually at a scale of 1:1250 or 1:2500) shows your property in relation to surrounding streets and buildings. It must clearly outline the application site in red, with any other land you own nearby outlined in blue. This gives the council immediate context.

The Block Plan then zooms in closer, typically at a scale of 1:500 or 1:200. It details your property boundary, the position of the existing house, and the footprint of your proposed work. It also needs to show neighbouring properties, public rights of way, and any significant trees, demonstrating exactly how your proposal sits on its plot.

A correctly drawn Site Location Plan is non-negotiable. It must be based on an up-to-date Ordnance Survey map and clearly show which way is north. Getting this wrong is one of the most common—and easily avoidable—reasons for an application to be immediately invalidated.

Existing and Proposed Floor Plans

Once the setting is clear, you need to show the "before and after." This is where your Existing and Proposed Floor Plans come in. These drawings are absolutely essential for showing the planning department the scale and nature of the changes you’re proposing.

• Existing Floor Plans: Think of these as a precise "as-is" record. They are a to-scale drawing of the property as it stands today, detailing every room, window, door, and wall. This establishes the baseline from which your proposed changes are measured.

• Proposed Floor Plans: This is where you get to show off your vision. These drawings illustrate what the property will look like once the work is done. They must clearly detail the new layout, the dimensions of the new spaces, and how everything flows together.

For a successful application, the difference between what exists and what’s proposed must be instantly understandable. At Harper Latter, we often use colour-coding or different line weights to help planning officers quickly grasp the extent of the work at a glance.

Elevations and Section Drawings

While floor plans give a bird's-eye view, Elevations and Section Drawings show your project from the outside and inside. They are crucial for communicating the external appearance and the internal structure.

Elevations are the straight-on views of each face of your building—front, back, and sides. You must provide both existing and proposed elevations to show precisely how the building’s appearance will change. This includes showing new windows, doors, and specifying the proposed external materials like brick, render, or timber cladding. Planners use these to assess the visual impact on the street and on neighbouring homes.

Section drawings, on the other hand, are like slicing through the building to reveal what’s going on inside. They show changes in height, the structure, and how a new extension connects to the old house, for example. For projects like loft conversions or basement extensions, detailed section drawings are indispensable. They are also vital in supporting other key documents, as we explain in our guide to the Design and Access Statement.

Meeting UK Drawing Standards for a Valid Application

Submitting planning drawings isn't like handing in coursework where a good effort might get you some marks. It's more of a strict, pass-or-fail test. Before a planning officer ever lays eyes on the merits of your design, a validation officer first checks if your drawings meet a precise set of technical standards.

If they don’t, your application is simply marked 'invalid' and won't even join the queue. This is a common and deeply frustrating roadblock for many homeowners, often leading to weeks or even months of delays before the eight-week decision timeline has even started.

It's crucial to understand that these standards aren't just arbitrary rules. Think of them as a universal language, designed to ensure every application the council receives is clear, consistent, and can be assessed fairly.

The Non-Negotiable Technical Requirements

To make sure your application is validated first time, your planning application drawings have to stick to several fundamental rules. These aren't about judging your design; they're about giving the planning team a clear, unambiguous picture of what you're proposing right from the start.

Every single drawing you submit must include:

• A Recognised Metric Scale: All drawings must be to a standard scale, like 1:50 for detailed plans or 1:100 for elevations. This is the only way an officer can grasp the real-world size and proportions of your project.

• A Scale Bar: Each drawing needs a printed scale bar. This simple tool allows for accurate measurements to be taken directly from the page, no matter if it's viewed on a screen or printed at a different size.

• A North Point: A north arrow is essential on every plan. It helps orient your property and the proposal, allowing officers to assess key factors like sunlight, overshadowing, and the impact on neighbouring homes.

• Clear and Unambiguous Labelling: Every plan needs a clear title (e.g., 'Proposed Ground Floor Plan'), and all key rooms, features, and proposed materials must be properly labelled.

Adhering to these standards is not optional. An application submitted with drawings at an unrecognised scale, or one that’s missing a north point, will be immediately returned. This isn't a critique of your design—it's a procedural failure that stops your project in its tracks.

Avoiding Instant Invalidation

The validation stage is where seemingly small mistakes can cause big delays. It's a meticulous box-ticking exercise, and any deviation from the national and local requirements will get your application rejected before it's even assigned to a case officer.

Common errors we see causing instant invalidation include submitting a Site Location Plan with an out-of-date map, forgetting to outline the site boundary in red, or providing drawings without the paper size and drawing number clearly stated.

These might sound like minor admin details, but for a council processing thousands of applications, they are vital for maintaining a legally sound and efficient system. A professional, detail-oriented approach from an architect like us guarantees all these technical points are hit perfectly. This methodical preparation is your best defence against the frustrating and costly delays that plague so many projects, ensuring your application moves smoothly into the formal assessment stage.

Common Drawing Mistakes That Can Lead to a Refusal

Getting planning permission can feel like navigating a minefield, and there's nothing more disheartening for a homeowner than receiving a refusal notice. While a council’s decision is influenced by many factors, it's often the planning application drawings themselves that are the root cause of a project being rejected. A simple mistake or omission can stop an otherwise brilliant project dead in its tracks.

Understanding these common pitfalls is the best way to avoid them. It’s not just about having neat drawings; it’s about using them to proactively answer the council's core questions with clarity, accuracy, and thoughtful design. Most refusals boil down to one of three things: inaccuracy, a negative impact on neighbours, or a clash with the local character.

It's no secret that planning delays are a major hurdle in the UK. While official targets might suggest an eight-week turnaround for minor applications, frequent requests for more time often stretch this to 12-16 weeks. A huge number of these delays come from problems with the initial drawings, showing just how high the financial and emotional cost of an inaccurate submission can be. You can read more about the impact of recent planning application delays to get a sense of the scale of the problem.

Inaccurate Site and Boundary Information

The most fundamental error you can make is submitting drawings that don’t accurately show the site as it is today. This isn’t about a minor typo; this goes right to the heart of your proposal's credibility. If a planning officer can’t trust your "existing" drawings, they have no reliable starting point from which to judge your "proposed" changes.

Common inaccuracies that will almost certainly lead to a refusal include:

• Incorrect property boundaries: Misrepresenting where your land ends and your neighbour's begins is a major red flag for any planning department.

• Missing trees or ground levels: Failing to show significant trees (especially those with Tree Preservation Orders) or important changes in the slope of the land can completely misrepresent your project's real-world impact.

• Inaccurate neighbouring properties: If your drawings incorrectly show the size, position, or window locations of the houses next door, it becomes impossible for the officer to properly assess issues like loss of light or overlooking.

A planning officer’s entire assessment is built on a foundation of trust. If your drawings are found to be inaccurate, that trust is immediately broken, and the officer is well within their rights to refuse the application on the grounds of insufficient or unreliable information.

Creating a Negative Impact on Your Neighbours

Your home doesn’t exist in a bubble. Local councils have a legal duty to protect the amenity of surrounding residents, and your drawings are the main piece of evidence they use to check this. Proposals that seem to create overlooking, overshadowing, or a sense of being "hemmed in" are among the most common reasons for refusal.

This is where a well-crafted set of drawings can make all the difference. For instance, rather than just showing a new window on a plan, a thoughtful design will use section drawings and sight-line analysis to prove it doesn’t look directly into a neighbour’s bedroom or garden.

Proactive design really shines here. By including shadow diagrams to show the minimal impact of a new extension on a neighbour’s garden, or by carefully positioning windows to maintain privacy for everyone, your drawings can build a compelling, visual argument that your design is considerate and compliant.

Clashing with Local Character and Policy

Finally, your drawings need to tell a story about how your project respects and enhances the local area, rather than detracting from it. This is absolutely critical in Conservation Areas or when dealing with Listed Buildings, but the principle applies everywhere. A proposal that just feels "out of place" is a prime candidate for refusal.

Your drawings must visually demonstrate how your design fits in. This means showing:

• Material choices: The elevations must clearly specify materials that are in keeping with the local style—whether that’s London stock brick, Welsh slate, or painted render.

• Scale and massing: Your drawings need to prove that the overall size and bulk of your proposal are in proportion with the surrounding properties and won't dominate the street.

• Architectural style: For extensions, the design must show a clear, respectful relationship with the original house. This can be achieved by seamlessly matching its style or by offering a high-quality, well-considered contemporary contrast.

Ultimately, your drawings are a tool of persuasion. By avoiding these common mistakes and instead using your plans to present a clear, accurate, and considerate vision, you dramatically increase your chances of a first-time approval. You turn a potential point of failure into your project's greatest asset.

Drawing Requirements for Listed Buildings and Conservation Areas

When your home is a listed building or sits within a conservation area, the standard rulebook for planning application drawings gets a major update. Suddenly, the process isn’t just about getting permission to build; it’s about proving your project respects and protects the building's unique place in history.

The stakes are much higher. Your drawings must do more than just illustrate a new extension or alteration. They need to tell a compelling story of thoughtful consideration, demonstrating how your plans will preserve or even enhance the property’s architectural significance. The local authority’s primary goal is safeguarding the area's special character, and your drawings are the key piece of evidence they’ll use.

This means the level of detail required in your application skyrockets. You're not just asking for approval—you're making a robust case that your proposal will celebrate the very qualities that make your property special.

Beyond Standard Plans and Elevations

While you’ll still need the full suite of standard drawings, a heritage application demands an extra layer of forensic detail. The focus shifts from the overall shape of the building to the specific elements that define its character. It’s like moving from a landscape painting to a detailed portrait, where every brushstroke and feature is scrutinised.

These additional, highly detailed drawings often include:

• Detailed Window and Door Drawings: A simple elevation won't cut it. You will almost certainly need to provide specific drawings of existing and proposed windows at a much larger scale (e.g., 1:20 or 1:10), showing their profiles, materials, glazing bars, and how they open.

• Drawings of Unique Features: If your project touches any distinctive historical elements—such as decorative cornices, original brick bonds, or unique joinery—these must be surveyed and drawn in meticulous detail.

• Comprehensive Street Scene Elevations: You’ll need to show your property in the wider context of its neighbours. This demonstrates how your proposed changes harmonise with the rhythm, scale, and material palette of the entire street.

Your drawings must demonstrate a deep understanding of what makes the building significant. It's about proving to the conservation officer that you are a sensitive custodian of heritage, not just a developer. This is a fundamental aspect of securing Listed Building Consent, which is often required alongside a planning application.

Proving a Sensitive Approach

At their core, these specialised drawings exist to prove that your proposed design is sympathetic to the original fabric of the building. They need to show a clear and respectful relationship between old and new, sensitively integrating modern improvements without compromising historical integrity.

For instance, if you’re proposing a modern glass extension on a Victorian terraced house, the drawings must detail exactly how the new structure “touches” the old one. They will show the junction points, the material choices, and how the new form complements, rather than competes with, the original building.

Ultimately, navigating the planning process for a heritage asset is a specialised skill. The drawings must be technically flawless and historically informed, building a compelling narrative for the conservation officer. This level of detail helps ensure your project is seen as a positive contribution that will protect the area's unique heritage for generations to come.

How an Architect Delivers Pitch-Perfect Planning Drawings

Tackling the planning process yourself can often feel like a shot in the dark. Engaging an architect isn't just about getting someone to draw up your ideas; it’s about transforming a daunting hurdle into a clear, creative, and strategic journey. A professional doesn't simply sketch what you ask for—they lead a meticulous process to create pitch-perfect planning drawings that give your project the best possible chance of approval.

This process is a roadmap designed to remove uncertainty. It begins long before the final drawings are even started, with a deep dive into your vision, your site’s unique quirks, and the local planning landscape. This groundwork is what truly separates a successful application from a standard one.

By working with an experienced, RIBA-accredited practice like Harper Latter Architects, you’re investing in a partnership. Our job is to translate your lifestyle goals into the precise visual language that planning officers understand, making sure every detail aligns with both your dream and the complex web of planning policy.

From Feasibility Study to Flawless Submission

The path to a successful planning application starts with solid preparation. An architect’s first move is never to jump straight into drawing. It’s to listen, analyse, and build a strategy. This initial phase is absolutely critical for de-risking the entire project before you commit significant time and money.

Our process breaks down like this:

• Initial Feasibility Studies: We first check your ideas against local planning policies, site constraints, and the realities of your budget. This early analysis flags potential roadblocks and uncovers hidden opportunities right from the start.

• Detailed Site Analysis: A measured survey is just the beginning. We also analyse everything from sun paths and neighbouring properties to local building materials and the specific character of your street. This creates a context-aware design.

• Concept Design and Development: This is where we get creative, exploring different solutions that meet your brief while proactively addressing any planning concerns. It's a collaborative stage, ensuring the final design we draw up is already primed for success.

Think of it like building a compelling legal case for your home. Your architect acts as your advocate, gathering all the evidence and structuring a powerful argument before presenting it to the "jury"—the planning committee. The final drawings are your closing statement, built on a foundation of solid research and strategic thinking.

The Value of a Rigorous Design Process

This methodical approach means that by the time we produce the final planning application drawings, we’ve already anticipated and solved most of the council’s likely questions. The elevations don't just show a new window; they show a window carefully positioned to avoid overlooking a neighbour. The floor plans don’t just add a new room; they demonstrate an intelligent use of space that enhances the building's character.

Suddenly, your drawings are no longer just a box-ticking exercise. They become a powerful tool of persuasion. They show the planning officer that your proposal isn't an impulsive whim but a well-considered, professional, and respectful development.

This is, without a doubt, the most effective way to get your project approved and turn your vision into a beautifully realised home.

Frequently Asked Questions About Planning Drawings

The world of planning applications can feel complex, and it’s only natural to have questions. To help you find some clarity, we’ve answered a few of the most common queries we hear from homeowners about planning application drawings.

Can I Draw My Own Planning Application Drawings?

While it’s tempting to try and draw your own plans for a simple project, it’s a path we strongly advise against. Local councils have incredibly strict validation criteria for scale, detail, and the specific information that must be shown.

Even a minor error can get your application immediately invalidated, leading to frustrating and entirely avoidable delays. For anything like an extension, a new build, or work on a heritage property, professional architectural drawings aren't just a good idea—they're essential. They’re crafted not only to meet technical standards but to build a strong case for your project, maximising your chance of a first-time approval.

How Much Do Planning Application Drawings Cost in the UK?

The cost of producing a full set of planning drawings really depends on the scale and complexity of your project. For a typical home extension in the London area, you can generally expect architectural fees for this planning stage to fall somewhere in the range of £3,000 to £7,000+.

Naturally, this figure will be higher for more intricate projects, like a bespoke new build or a sensitive renovation in a conservation area. This fee covers the vital work of conducting a detailed site survey, developing the design, and applying the expert knowledge needed to produce a fully compliant set of drawings ready for submission.

It's helpful to view this cost not as an expense, but as an investment. Professional drawings de-risk the entire process, saving you from potentially far more expensive delays or even a costly refusal.

What Is the Difference Between Planning and Building Regulations Drawings?

This is a crucial distinction and a very common point of confusion. Think of it this way: planning drawings are all about the principle of the development. They focus on what it will look like, its size, and its impact on the street and your neighbours. They are used by the council to decide if you are allowed to build.

Building Regulations drawings, on the other hand, are completely separate. They are a far more technical and detailed set of documents that specify how the project must be constructed to meet national standards for structural integrity, fire safety, energy efficiency, and accessibility. You'll commission these only after you have secured planning permission. We dive deeper into this in our overview of navigating the planning application process.

How Long Does It Take to Prepare Planning Application Drawings?

For a standard home extension, you can expect the process of preparing a full set of high-quality planning application drawings to take between four and eight weeks.

This timeframe allows for a proper measured survey of your property, time to develop the initial design concepts, and a round of feedback with you before we finalise the detailed drawings for submission.

---
