Mastering Swimming Pool Plant Room Design

Every swimming pool has a secret. Tucked away out of sight, there’s a technical space that does all the hard work – the plant room. Think of it as the engine room or the beating heart of your entire pool system, housing the critical machinery that keeps the water pristine, warm, and inviting.

The Heartbeat of Your Home Swimming Pool

A swimming pool plant room is the command centre for your luxury pool. It’s far more than a utility cupboard; it’s a carefully engineered space where all the essential equipment works in quiet harmony. Without a well-designed plant room, the dream of a crystal-clear home pool can quickly turn into a high-maintenance headache.

This is where the real magic happens. Water is continuously drawn from the pool, passed through powerful filters, heated to your perfect temperature, and treated with sanitisers before being returned. For high-end residential projects, especially the complex basement pools we often design in South West London, getting the plant room right is just as crucial as the design of the pool itself.

Meticulous planning of the plant room is the single most important factor in ensuring the long-term efficiency, safety, and enjoyment of a residential swimming pool. It directly impacts running costs, ease of maintenance, and the overall quality of the swimming experience.

A thoughtfully designed space delivers some serious benefits:

• Operational Efficiency: A logical layout helps all the components work together seamlessly, cutting down on energy use and wear and tear. That means lower utility bills.

• Ease of Maintenance: When a service engineer can safely and easily access every piece of equipment, maintenance is quicker, more effective, and less expensive.

• Safety and Compliance: Proper organisation, ventilation, and secure chemical storage are non-negotiable for meeting UK health and safety regulations.

• Future-Proofing: Good design leaves room for tomorrow. Allocating enough space from the start makes it much easier to upgrade to new technologies, like sustainable heating systems, without needing major works down the line.

Ultimately, investing proper architectural thought into the plant room isn't just a technical box-ticking exercise. It's a foundational step in creating a trouble-free and valuable asset for your home. As we cover in our complete UK indoor swimming pool design guide, expert planning transforms this functional space from an afterthought into an indispensable part of your luxury lifestyle.

Exploring the Essential Plant Room Equipment

Step inside a swimming pool plant room, and you’ll find the machinery that turns a simple tank of water into a luxury swimming experience. It can look like a complex web of pipes and pumps, but understanding how each part works is key to making smart decisions with your architect and pool specialist.

Think of it as the engine room of your pool. Every component has a specific job, and they all work together to keep the water clean, safe, and perfectly warm.

The Heart and Kidneys of the System

At the core of it all are the circulation pump and the filter. The circulation pump is the heart of your pool. It tirelessly draws water from the main basin, pushing it through the entire filtration and treatment system before sending it back, sparkling clean.

For high-end residential projects today, variable-speed pumps are the standard. Unlike older pumps that run at full blast all the time, these modern units adjust their flow rate, dramatically cutting down on energy use.

Once the pump has done its job, the water is sent to the filter—the system's kidneys. The filter’s role is to trap and remove physical debris like dust, pollen, hair, and skin cells. Without it, the water would quickly become cloudy and unhygienic. Modern media filters are a great choice, offering excellent performance with minimal upkeep.

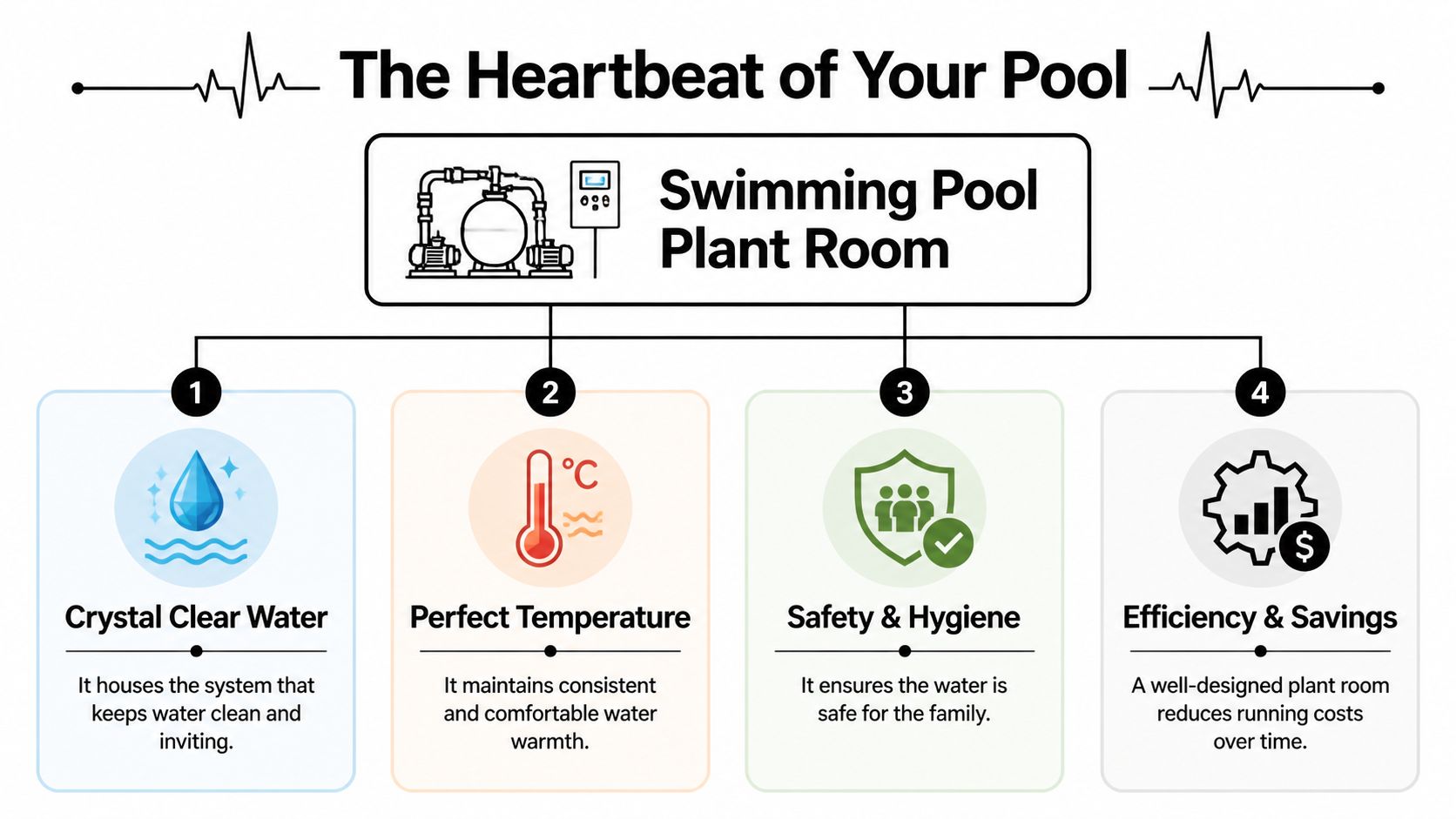

The infographic below shows how the plant room acts as the central hub for your pool's health and water quality.

It’s clear the plant room does more than just filter water. It’s responsible for temperature control, hygiene, and ensuring the whole system runs efficiently for years to come.

Maintaining Perfect Temperature and Purity

After filtration, the water is heated. Keeping the pool at a consistently comfortable temperature is a hallmark of luxury, and the equipment to do this lives in the plant room. Your choice of heater will come down to a balance of running costs, efficiency, and environmental impact.

A well-managed swimming pool plant room in the UK is the frontline defence against contamination. Effective systems are responsible for preventing 90% of waterborne illnesses in pools by maintaining precise chemical balances.

A major focus in modern projects is integrating technology that boosts both safety and efficiency. For instance, using variable-speed pumps can slash energy consumption by up to 80% compared to older models. At the same time, advanced UV disinfection systems can reduce the need for chlorine by as much as 50%, leading to a healthier and more pleasant swim. You can find more detail on professional pool management on this helpful pool training resource.

Effective water treatment isn’t just about filtration; it’s a two-step approach to sanitisation.

1. Automated Chemical Dosing: Think of this as the brain of your water treatment. Electronic probes constantly monitor the pool's pH and sanitiser levels, automatically adding precise amounts of chemicals when needed. This avoids the highs and lows of manual dosing, keeping the water consistently safe and comfortable.

2. UV Sterilisation: This is a powerful secondary sanitiser. A UV steriliser uses ultraviolet light to neutralise bacteria, viruses, and other microbes that might be resistant to chlorine. It not only adds an extra layer of safety but also helps break down chloramines—the culprit behind that typical "pool smell" and skin irritation.

Comparison of Plant Room Heating Systems

Choosing the right heating system is a critical decision that balances the initial investment with long-term running costs. For high-end residential pools, the options vary significantly in performance and efficiency.

The table below breaks down the most common technologies.

Heating System	Typical Efficiency	Annual Running Cost (Estimate)	Key Benefit
Gas or Oil Boiler	80-95%	High	Fast heat-up times and reliable performance
Electric Heater	99%+	Very High	Lower initial cost and compact size
Air Source Heat Pump	300-600%	Low	Highly energy-efficient and low carbon footprint

While each system has its place, air source heat pumps are becoming the go-to choice for London homes, especially for those focused on sustainability and future-proofing against rising energy prices. They work by extracting latent heat from the air, making them incredibly efficient even on cooler days.

By getting to grips with how these core components—the pump, filter, heater, and sanitation systems—work in harmony, you'll be far better prepared to discuss the technical details and ensure your project delivers the flawless swimming experience you're after.

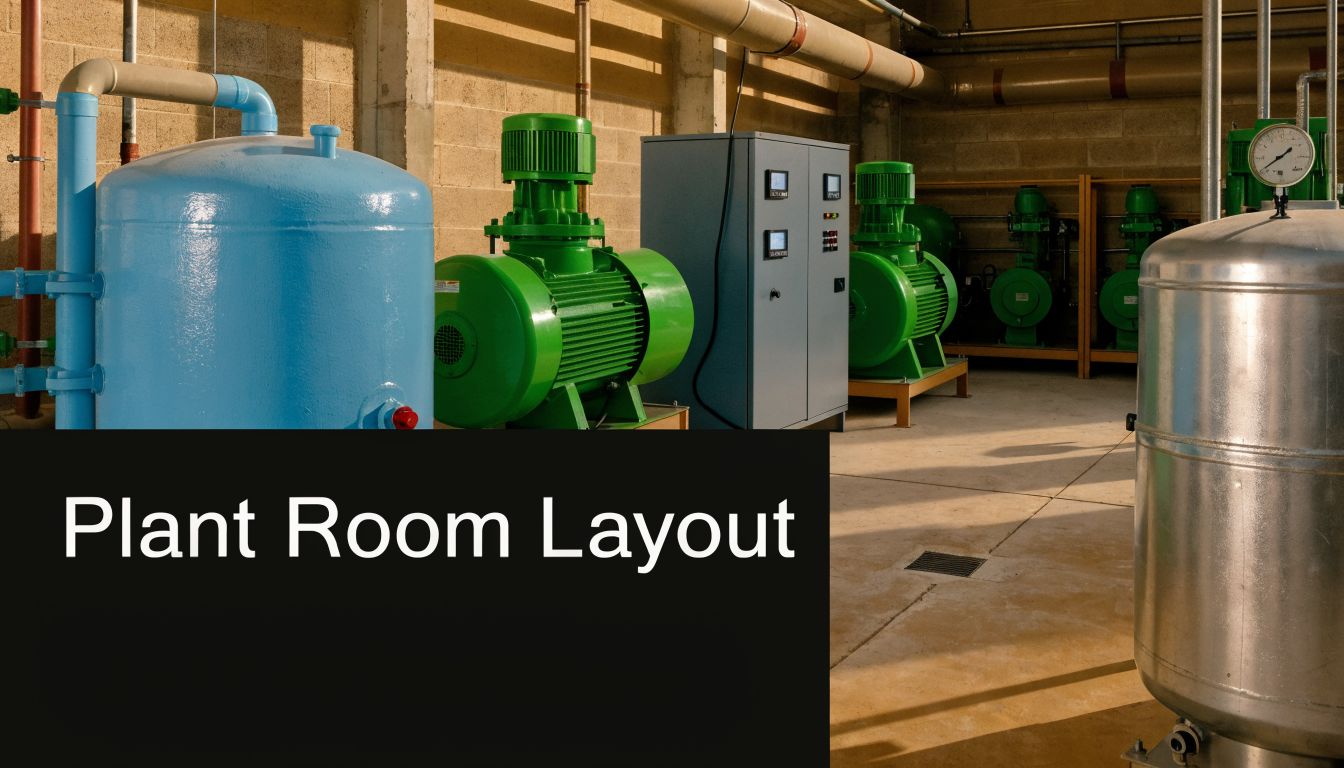

Once you’ve nailed down the essential equipment, your focus naturally shifts to the physical space that will house it all. Designing the swimming pool plant room isn't just a technical exercise; the layout and location are foundational decisions that directly impact future maintenance, safety, and even the peace and quiet of the home.

Getting this stage wrong is a recipe for operational headaches and expensive changes down the line. It's a part of the project that demands foresight.

The first question we always hear from architects and clients is, "So, how big does it actually need to be?" While there isn't a single magic number, one thing is certain: a cramped plant room is a constant source of frustration. When a space is too tight, routine servicing becomes a nightmare, proper maintenance gets neglected, and it can quickly become a safety hazard for the engineers who have to work in it.

A good rule of thumb? Always design for generosity. A spacious plant room is a far better investment than one that just barely squeezes the equipment in. It allows for future upgrades and gives engineers the elbow room they need to work safely and efficiently.

Sizing and Space Planning

When planning a swimming pool plant room in the UK, especially in a high-value London property, precise space allocation is key. You're not just finding a home for a pump and a filter; you're designing a critical piece of the home's mechanical infrastructure.

Current guidelines suggest aiming for a plant room that's at least 20% larger than what the initial equipment footprint requires, with a minimum ceiling height of 2.4m to ensure safe access and movement. Don't forget ventilation. UK government data has shown that as many as 25% of recent pool closures were linked to plant room ventilation failures, which underscores just how crucial it is to comply with regulations mandating 6-10 air changes per hour. You can discover more about planning considerations for your plant room.

Think of the layout as a well-organised workshop. Every tool needs its place, and there must be clear, unobstructed pathways for the user.

• Access Pathway: Ensure there's a clear route of at least 900mm around all major pieces of equipment. This is vital for bringing parts in and out, and for allowing technicians to work without being hemmed in.

• Component Removal: Always plan for a worst-case scenario. Could a large filter tank or a heavy pump be removed and replaced without having to dismantle half the system?

• Wall Space: Don’t underestimate the importance of the walls. They are crucial for mounting control panels, chemical dosing units, and electrical boards at a safe and accessible height.

A well-organised layout also separates the "wet" and "dry" zones. It’s logical to group pumps and filters—which are directly connected to water circuits—together. Meanwhile, electrical panels and sensitive control systems should be kept well away from any potential leaks, ideally on a raised plinth for extra protection.

Choosing the Right Location

For high-end properties in South West London, where every square metre is at a premium, the location of the plant room requires careful strategic thought. Each option comes with its own distinct set of advantages and challenges.

The ideal location for a swimming pool plant room minimises the distance water has to travel, reduces noise transmission to living areas, and provides easy access for maintenance without disrupting the home.

A common approach is to weigh the pros and cons of three primary locations, especially in the context of a London home.

Location Options for a London Home:

Location	Pros	Cons	Best For
Basement	Utilises otherwise unused space; excellent for acoustic isolation from bedrooms; close to basement pools.	Requires robust waterproofing, drainage (sump pump), and mechanical ventilation.	High-end homes with new basement extensions and integrated leisure suites.
Outbuilding/Shed	Excellent acoustic separation; easy access for engineers without entering the main house.	Requires insulated underground pipework; longer pipe runs can lead to heat and pressure loss.	Properties with larger gardens where a dedicated structure can be discreetly located.
Integrated (e.g., Garage)	Can be cost-effective by using an existing structure; easy access to power and water services.	Noise and vibration can travel into the main house; requires significant acoustic insulation.	Projects where budget or garden space is limited, and careful acoustic design is implemented.

Ultimately, the best location is decided upon early in the architectural design phase. By treating the plant room not as an afterthought but as an integral part of the home's mechanical systems, you create a layout that is logical, safe, and perfectly suited to keeping the pool in pristine condition for years to come.

Managing Ventilation, Acoustics, and Structural Demands

https://www.youtube.com/watch?v=NF-oQfn5Kgw

Once you’ve got the equipment layout sorted, the next challenge is managing the technical environment of the plant room itself. This space has to handle air, sound, and enormous weight to work safely and invisibly within a high-end home. Getting these elements wrong can lead to serious problems like structural damage, constant noise, and falling foul of regulations.

A well-engineered plant room stands on three pillars: powerful ventilation, smart acoustic control, and robust structural support. Each one needs to be planned right from the start of the architectural process, because fixing mistakes later on is a costly and disruptive headache. This is especially true for basement pools in London, where the demands are even greater.

Taming the Air and Sound

Proper ventilation isn’t just a nice-to-have; it’s an absolute must for any indoor pool. The combination of high humidity from the water’s surface and the gases released by treatment chemicals creates a corrosive atmosphere that can eat away at the building fabric and the machinery.

A dedicated mechanical ventilation system is the only real solution. Its job is to manage humidity, push out stale air filled with chloramines (that classic ‘pool smell’), and bring in fresh, treated air. Under UK Building Regulations, specifically Approved Document F, a plant room has to achieve a certain number of air changes per hour to keep the environment safe and stable.

For luxury homes in Wimbledon and across South West London, acoustics are just as important. The constant hum from pumps, heaters, and fans can easily become noise pollution, vibrating through the structure into quiet living areas. The aim is to keep all that operational noise locked inside the plant room.

An acoustically isolated swimming pool plant room is a hallmark of high-end design. The aim is to achieve noise levels below 45dB in adjacent habitable rooms—equivalent to the gentle hum of a modern refrigerator—ensuring the pool’s operation is never felt, only enjoyed.

Hitting that level of quiet requires a layered approach to soundproofing:

• Acoustic Insulation: We install high-density insulation in the walls and ceiling of the plant room to soak up airborne sound waves before they can travel.

• Decoupled Structures: Building a 'room within a room' is a highly effective technique. By creating isolated wall and ceiling structures, we stop vibrations from passing through the building’s frame.

• Anti-Vibration Mounts: All heavy machinery, particularly pumps and motors, must sit on specialised anti-vibration pads or spring mounts. This tackles low-frequency hums right at the source.

• Solid-Core Doors: The final piece of the puzzle is a heavy, solid-core door fitted with acoustic seals. This ensures noise doesn't just leak out through the doorway.

Structural and Electrical Essentials

The structural and electrical demands of a swimming pool plant room are no small matter. The floor, in particular, has to be designed to support the incredible weight of all the equipment. A large sand filter, for example, can weigh over a tonne once it’s full of water and filter media.

This is precisely why detailed structural calculations are a critical part of the design process. The floor slab needs to be specified to handle not just the machinery's weight, but also the potential load of stored chemicals and maintenance staff. For basement projects, this means the architect and structural engineer must be in close collaboration from day one.

Waterproofing, often called 'tanking', is another non-negotiable. The plant room has to be completely sealed to contain any potential leaks or spills, protecting the rest of the property from water damage. This usually means applying a waterproof membrane across the floor and up the walls to a certain height, creating a sealed 'bund' area. A dedicated floor drain connected to a sump pump is also vital, especially in below-ground spaces.

Finally, the electrical installation needs specialist expertise. The damp and potentially corrosive atmosphere of a plant room is a dangerous place for electricity. All wiring has to be protected, and circuits must comply with Part P of the Building Regulations and the IET Wiring Regulations. This includes using water-resistant enclosures for all control panels and making sure every circuit is properly earthed and protected by Residual Current Devices (RCDs) for total safety.

Navigating UK Health, Safety, and Building Regulations

A professionally designed swimming pool plant room isn't just about performance; it’s about safety, compliance, and total peace of mind. For architects and homeowners in London, getting to grips with the complex web of health, safety, and building regulations is a critical part of any high-end residential pool project.

Getting this right from the outset ensures your pool is a safe, legal, and correctly engineered asset for your home. These rules aren't just about ticking boxes; they exist to protect your family, your property, and your investment. From electrical safety in a damp environment to the secure storage of chemicals, every detail is governed by a framework that simply cannot be overlooked.

The Foundations of Plant Room Compliance

Several key documents and regulations shape the design of a compliant plant room. The Pool Water Treatment Advisory Group (PWTAG) offers the industry's gold-standard code of practice. While not law in itself, its guidance is considered the benchmark for best practice and is often cited in legal cases should anything go wrong.

Alongside PWTAG, a number of statutory regulations apply directly to the space itself.

• COSHH (Control of Substances Hazardous to Health): This is absolutely paramount. Pool chemicals are, by their very nature, hazardous. COSHH regulations dictate exactly how they must be stored and handled, requiring a dedicated, secure, and well-ventilated area away from the main plant.

• Building Regulations: Several parts of the UK Building Regulations are directly relevant. Part P covers electrical safety, Part G deals with sanitation and water supply, and Part F governs ventilation—all critical pillars for a safe plant room design.

• Health and Safety at Work etc. Act 1974: While this act is primarily focused on commercial settings, its principles are essential for ensuring the safety of any engineers or maintenance staff who will work on your pool.

A compliant plant room is a safe plant room. These rules aren't designed to be obstructive; they are a blueprint for preventing accidents, protecting health, and ensuring the long-term integrity of your property. Adherence is non-negotiable.

Chemical Safety and Bunded Storage

One of the most scrutinised aspects of plant room safety is how chemicals are stored. The data here is worryingly clear: The Health and Safety Executive (HSE) found that a staggering 78% of audited residential plant rooms lacked proper spill containment. This is precisely why COSHH compliance insists on bunded storage.

Think of a bund as a containment tray or a purpose-built area designed to hold 110% of the volume of the largest single chemical container. It’s a simple but crucial feature that ensures any leak is safely contained, preventing hazardous mixing or environmental damage. You can discover more statistics on the importance of pool safety standards.

PWTAG's influence has also had a huge impact on hygiene; their national survey showed that routine microbiological testing in plant rooms helped reduce cryptosporidium outbreaks by 95% since quarterly checks became standard. Furthermore, for increasingly popular basement pools, plant rooms must now feature emergency shutdown systems, with data showing a 22% drop in accidents since the 2018 updates to BS EN 15288 standards were implemented.

Electrical and Sanitation Regulations

The electrical system is another area where the rules are absolute. Given the obvious risks of mixing water and electricity, Part P of the Building Regulations is strictly enforced. It mandates that all electrical work must be carried out by a competent, certified electrician.

This includes specific requirements such as:

• Using IP-rated (ingress protection) enclosures for all electrical components to keep them sealed from moisture.

• Ensuring all circuits are protected by Residual Current Devices (RCDs) for instant shut-off in case of a fault.

• Positioning electrical panels well away from any potential water sources or pipework.

Finally, Part G (Sanitation, Hot Water Safety and Water Efficiency) comes into play. This governs everything from the backwash drainage system to ensuring that contaminated pool water can never cross-contaminate your mains water supply. Understanding how these interlocking rules work together is key to a successful project. You can explore our in-depth article to get a guide to building regulations compliance and see how it applies to your home.

Creating a Sustainable and Future-Proof Plant Room

When designing a plant room for a modern swimming pool, our focus shifts beyond just immediate power. It's about engineering a smart, sustainable system that actively drives down running costs and minimises its environmental footprint. By choosing low-carbon and energy-efficient technologies from the very beginning, you are effectively ‘future-proofing’ your investment against volatile energy prices.

This approach elevates the plant room from a simple utility space into the highly efficient, intelligent core of your home’s leisure facilities. It’s a strategic design decision that pays dividends for years.

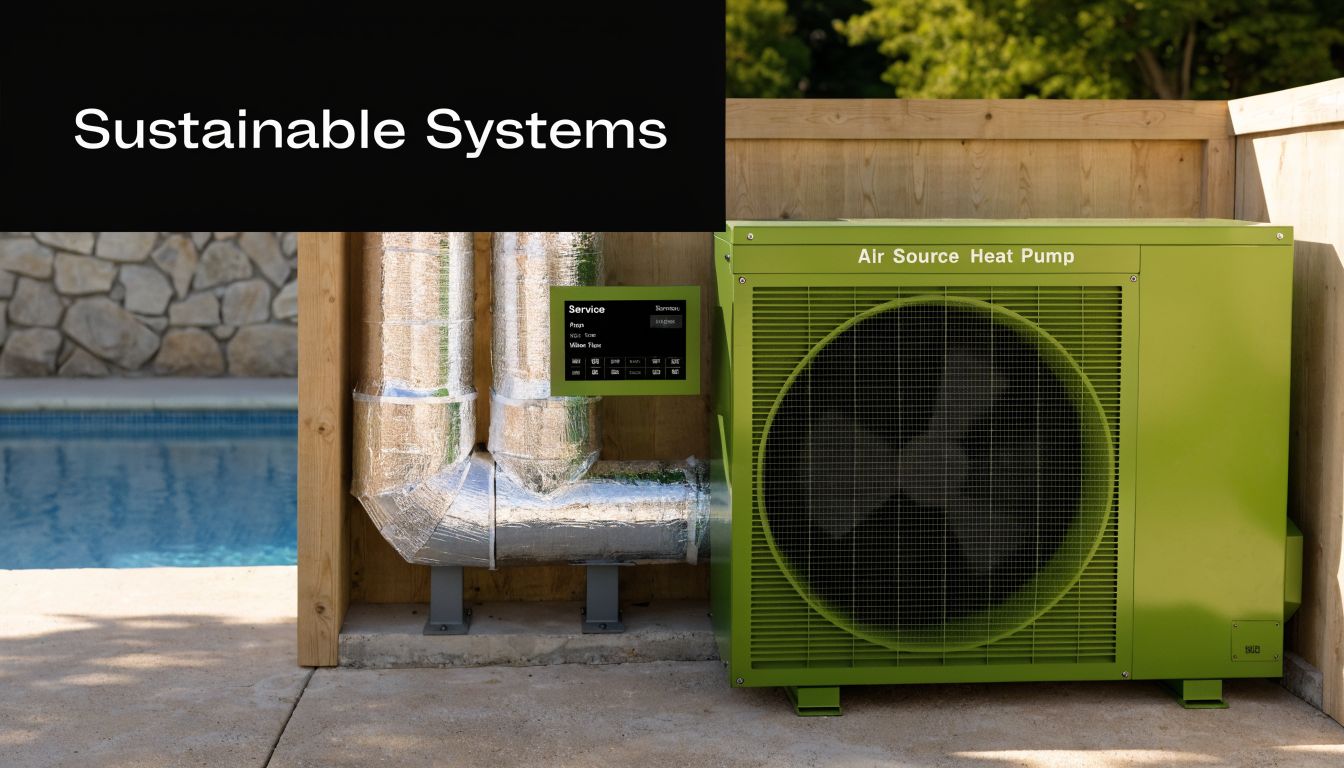

Embracing Low-Carbon Technologies

The heart of a sustainable plant room is its heating system. While traditional gas boilers can certainly do the job, they are quickly being outpaced by far more efficient alternatives that deliver significant long-term savings and performance.

Air source heat pumps have become a leading choice for homeowners looking to reduce their carbon footprint. These incredible devices work much like a refrigerator in reverse; they extract latent heat from the outside air—even on a cool British day—and efficiently transfer it into your pool water. For every unit of electricity they use, they generate between 3 to 6 units of heat, making them remarkably efficient.

You can take the system's efficiency even further with a few key additions:

• Heat Recovery Systems: These clever units capture waste heat from the pool hall’s ventilation system, which would otherwise be lost to the atmosphere. This recovered energy is then recycled to help heat the pool water or the air, making the entire setup more economical.

• Solar Thermal Panels: By integrating solar thermal panels onto a suitable roof, you can harness the sun’s free energy. This directly supplements your main heating system, reducing your reliance on the grid and cutting down your energy bills.

Future-proofing your plant room is less about trends and more about smart financial planning. Adopting energy-efficient technology now insulates your investment from future energy market shocks and tangibly enhances your property’s long-term value.

Maximising Efficiency Through Smart Components

Beyond the main heat source, several other components are crucial for creating a truly efficient system. The small choices we make here can add up to huge long-term savings on running costs. For a detailed breakdown, it's worth exploring our guide on UK swimming pool construction costs explained.

One of the single most effective upgrades you can make is installing variable-speed pumps. Old-fashioned single-speed pumps are a bit of a blunt instrument, running at full power all the time. In contrast, modern pumps intelligently adjust their speed to the task, running slowly for filtration and ramping up only when needed. This simple change can reduce a pump's energy consumption by as much as 80%.

Finally, never underestimate the impact of great insulation. A high-quality, well-fitted pool cover is the most effective tool for preventing heat loss from evaporation—the single biggest energy drain on any pool. When you combine this with excellent insulation of the plant room itself and all its pipework, you create a complete, holistic system that holds onto heat, eliminates waste, and delivers a far more sustainable swimming experience.

Common Questions About Pool Plant Rooms

Getting the details right on a swimming pool plant room can feel daunting, but a few key principles are all you need for a successful project. Here are the questions we’re most frequently asked by homeowners embarking on a high-end pool installation, along with some straight-talking answers.

How Much Space Do I Really Need for a Plant Room?

While there’s no single magic number, a very common mistake is underestimating the space required. A cramped plant room isn't just difficult to work in; it’s unsafe to service. As a good rule of thumb, we always design for at least 900mm of clear access around major equipment like pumps and filters.

More importantly, you have to think about the entire lifecycle of the equipment. Can a large filter tank or a heavy motor actually be removed and replaced without having to take everything else apart? We recommend a minimum ceiling height of 2.4 metres and always advise designing with generosity. A little extra space now prevents major headaches later.

Does the Plant Room Have to Be Noisy and Unsightly?

Absolutely not. In fact, a hallmark of a well-designed, architect-led project is that the plant room's operation is completely invisible to anyone enjoying the home. Through intelligent acoustic design, we can ensure the machinery is neither seen nor heard.

The goal is to contain all operational noise within the plant room itself. Using a combination of high-density acoustic insulation, anti-vibration mounts for the machinery, and solid-core acoustic doors, we can keep noise levels in adjacent living areas below 45dB—as quiet as a modern refrigerator.

This layered approach to soundproofing is what ensures your pool provides serene enjoyment, not a constant, disruptive hum in the background.

Can My Plant Room Be Located in the Basement?

Yes, and for many London properties, the basement is the ideal location. It keeps all the equipment close to the pool—which is often also in the basement—minimising pipework runs and improving hydraulic efficiency. It also offers excellent natural acoustic and thermal insulation.

However, a basement location demands meticulous planning. The key considerations include:

• Robust Waterproofing: The space must be fully "tanked" or bunded to contain any potential leaks or spills. This is non-negotiable.

• Forced Ventilation: A mechanical system is essential to properly manage humidity, prevent dampness, and maintain air quality.

• Sump and Pump System: You need a reliable drainage system in place to automatically remove any water that might collect on the floor.

When it's correctly engineered, a basement swimming pool plant room is a perfectly safe, practical, and efficient solution.

---
